ServiceRegistry HTTP Demo

Recap

In this demo, we will demonstrate through a concrete example how a system should use the ServiceRegistry endpoints.

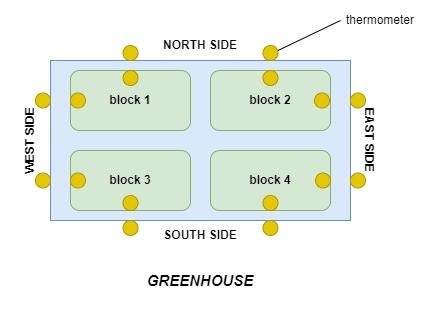

image of the greenhouse

Let's say, we have a greenhouse. Inside the greenhouse, there are plantations divided into blocks, and close to the blocks, THERMOMETHERs are placed. We can monitor the temperature of the blocks, using the Systems that run on the THERMOMETERs. If the temperature is too extreme, the Systems may send a warning to our office.

There are two types of THERMOMETERs: indoor and outdoor THERMOMETERs, so we can even monitor the temperature outside the greenhouse.

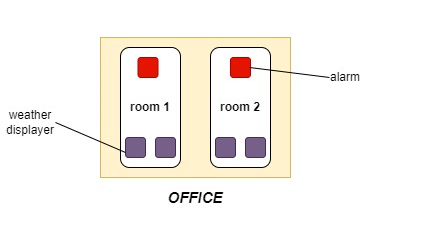

image of the office

In our office, there are different WEATHER_DISPLAYERs that can show various data about the weather, such as wind or temperature. The temperature data measured by the THERMOMETERs in the greenhouse is sent to these WEATHER_DISPLAYERs. We also have ALARMs, this way we are immediately informed about extreme temperatures.

THERMOMETERs can provide information on temperature in Celsius, Fahrenheit or Kelvin scales, but not all THERMOMETERs are capable of sending data at all scales.

The concrete entities used in our example can be mapped to ServiceRegistry entities as follows:

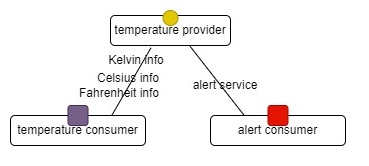

image of entities

  • Devices: THERMOMETERs, WEATHER_DISPLAYERs and ALARMs
  • Systems: TemperatureProviders running on the THERMOMETERs, TemperatureConsumers running on the WEATHER_DISPLAYERs, and AlertConsumers running on the ALARMs.
  • Services: fahrenheitInfo, kelvinInfo, celsiusInfo, and alertService, provided by the TemperatureProviders and consumed by the TemperatureConsumers and the AlertConsumers

We will demonstrate the usage of the endpoints via two examples: example 1 is about a provider system, and example 2 is about a consumer system.

Example 1: Provider

In the following, we'll see how:

  • a system called TemperatureProvider2,
  • running on the device named THERMOMETER2,
  • publishes its services: kelvinInfo, celsiusInfo and alertService

after registering itself into the Local Cloud.

Step 1: Authentication

First of all, the system should perform some kind of authentication. In this example the declared authentication strategy will be used.

To perform this type of authentication, the system must provide an authentication header for each request. This should consist of the SYSTEM// prefix, followed by the name of the system.

In our example, the authorization header will look like this:

-H 'Authorization: Bearer SYSTEM//TemperatureProvider2'

Step 2: Lookup Devices

During registration, the system can specify which device it is running on. In this case, our device is called THERMOMETER2. Specifying the device is optional, but let's say, that in our example it is relevant to the operation of TemperatureProvider2. Therefore, the system first looks up if there is a device with name THERMOMETER2 in the Local Cloud, to make sure that the device it is running on is already registered. (Otherwise you must register the device first, as shown in example 2.)

The request looks like this:

curl -X 'POST' \
  'http://localhost:8443/serviceregistry/device-discovery/lookup' \
  -H 'accept: application/json' \
  -H 'Authorization: Bearer SYSTEM//TemperatureProvider2' \
  -H 'Content-Type: application/json' \
  -d '{
  "deviceNames": [
    "THERMOMETER2"
  ],
  "addresses": [
  ],
  "addressType": "",
  "metadataRequirementList": [
  ]
}'

Which leads to the following response from the ServiceRegistry:

{
  "entries": [
    {
      "name": "THERMOMETER2",
      "metadata": {
        "scales": [
          "kelvin",
          "celsius"
        ],
        "maxTemperature": {
          "kelvin": 310,
          "celsius": 40
        },
        "minTemperature": {
          "kelvin": 260,
          "celsius": -10
        }
      },
      "addresses": [
        {
          "type": "MAC",
          "address": "81:ef:1a:44:7a:f5"
        }
      ],
      "createdAt": "2024-11-04T01:53:02Z",
      "updatedAt": "2024-11-04T01:53:02Z"
    }
  ],
  "count": 1
}

Since we have an existing entity back, THERMOMETER2 is indeed a registered device.

Step 3: Register System

Now we can perform the registration operation of our TemperatureProvider2 system.

To register, we need to provide the following information about the system:

  • metadata: It's totally up to us what we put into it. For TemperatureProvider2, we want to make sure, that it contains a list about the temperature scales that the system can manage (Kelvin and Celsius), a location in the greenhouse from which the system's device measures the temperature (North side, 2. block), and the type of the thermometer (indoor).
  • version: Since there was no prior version of this system, we can leave this field empty. The ServiceRegistry will initialize this value to a default, which is 1.0.0.
  • addresses: This is typically an IP address or a hostname for the system. In case of the TemperatureProvider2, we want to provide both. For IP address, we are using 192.168.56.116, and the hostname is tp2.greenhouse.com.
  • device name: This can be left blank, but we will set it to the name of our device: THERMOMETER2.

It is not necessary to specify the system name explicitly, because the ServiceRegistry extracts it from the authorization header.

Based on the above, the request looks like this:

curl -X 'POST' \
  'http://localhost:8443/serviceregistry/system-discovery/register' \
  -H 'accept: application/json' \
  -H 'Authorization: Bearer SYSTEM//TemperatureProvider2' \
  -H 'Content-Type: application/json' \
  -d '{
  "metadata": {
    "scales": [ "kelvin", "celsius" ],
    "location": { "side": "North", "block": 2 },
    "indoor": true
  },
  "version": "",
  "addresses": [
    "192.168.56.116",
    "tp2.greenhouse.com"
  ],
  "deviceName": "THERMOMETER2"
}'

We receive the following response:

{
  "name": "TemperatureProvider2",
  "metadata": {
    "scales": [
      "kelvin",
      "celsius"
    ],
    "location": {
      "side": "North",
      "block": 2
    },
    "indoor": true
  },
  "version": "1.0.0",
  "addresses": [
    {
      "type": "IPV4",
      "address": "192.168.56.116"
    },
    {
      "type": "HOSTNAME",
      "address": "tp2.greenhouse.com"
    }
  ],
  "device": {
    "name": "THERMOMETER2",
    "metadata": {
      "scales": [
        "kelvin",
        "celsius"
      ],
      "maxTemperature": {
        "kelvin": 310,
        "celsius": 40
      },
      "minTemperature": {
        "kelvin": 260,
        "celsius": -10
      }
    },
    "addresses": [
      {
        "type": "MAC",
        "address": "81:ef:1a:44:7a:f5"
      }
    ],
    "createdAt": "2024-11-04T01:53:02Z",
    "updatedAt": "2024-11-04T01:53:02Z"
  },
  "createdAt": "2024-11-08T10:21:10.950683800Z",
  "updatedAt": "2024-11-08T10:21:10.950683800Z"
}

Step 4: Register Service Instances

The TemperatureProvider2 system that we have just registered provides three services in the Local Cloud:

  • kelvinInfo: provides temperature information using the Kelvin scale,
  • celsiusInfo: provides temperature information using the Celsius scale,
  • alertService: sends an alert if the temperature is extreme (by default, these thresholds are 10 and 25 Celsius, but the consumer can overwrite them).

We have to register these services one by one.

1. kelvinInfo: We have to provide the following information:

  • service definition name: In this example, we use kelvinInfo, which is already an existing service definition stored in the Local Cloud. You can use a non-existing service definition as well, because in that case, the registration process will create it.
  • version: We will use the default version, so we can leave this field blank.
  • expires at: This is a timestamp in the future, when the service is no longer funtioning. For kelvinInfo, we set this to 01. 01. 2030.
  • metadata: This can be customised depending on the service. For temperature information, we define the margin of error, which is 0.5 degree.
  • interfaces: All the services use HTTP protocol, so we will go with the template named generic_http, that already exists in the Local Cloud. Note that in our case, the service discovery interface policy is set to restricted, which means that only already existing interface templates can be used. If you set this to extendable or open, you can use non-existent interface templates, and they will be created as well. The interface provided by the kelvinInfo service is the following:
    • GET tp2.greenhouse.com:8080/kelvin/query

Based on these specifications, the request looks like this:

curl -X 'POST' \
  'http://localhost:8443/serviceregistry/service-discovery/register' \
  -H 'accept: application/json' \
  -H 'Authorization: Bearer SYSTEM//TemperatureProvider2' \
  -H 'Content-Type: application/json' \
  -d '{
  "serviceDefinitionName": "kelvinInfo",
  "version": "",
  "expiresAt": "2030-01-01T00:00:00Z",
  "metadata": {
    "marginOfError": 0.5
  },
  "interfaces": [
    {
      "templateName": "generic_http",
      "protocol": "http",
      "policy": "NONE",
      "properties": {
        "accessAddresses": [ "192.168.56.116", "tp2.greenhouse.com" ],
        "accessPort": 8080,
        "basePath": "/kelvin",
        "operations": { "query-temperature": { "method": "GET", "path": "/query" } }
      }
    }
  ]
}'

After successful operation, we will receive the JSON object representation of the registered service:

{
  "instanceId": "TemperatureProvider2|kelvinInfo|1.0.0",
  "provider": {
    "name": "TemperatureProvider2",
    "metadata": {
      "scales": [
        "kelvin",
        "celsius"
      ],
      "location": {
        "side": "North",
        "block": 2
      },
      "indoor": true
    },
    "version": "1.0.0",
    "addresses": [
      {
        "type": "IPV4",
        "address": "192.168.56.116"
      },
      {
        "type": "HOSTNAME",
        "address": "tp2.greenhouse.com"
      }
    ],
    "device": {
      "name": "THERMOEMTER2",
      "metadata": {
        "scales": [
          "kelvin",
          "celsius"
        ],
        "maxTemperature": {
          "kelvin": 310,
          "celsius": 40
        },
        "minTemperature": {
          "kelvin": 260,
          "celsius": -10
        }
      },
      "addresses": [
        {
          "type": "MAC",
          "address": "81:ef:1a:44:7a:f5"
        }
      ],
      "createdAt": "2024-11-04T01:53:02Z",
      "updatedAt": "2024-11-04T01:53:02Z"
    },
    "createdAt": "2024-11-08T10:21:11Z",
    "updatedAt": "2024-11-08T10:21:11Z"
  },
  "serviceDefinition": {
    "name": "kelvinInfo",
    "createdAt": "2024-11-08T11:24:43Z",
    "updatedAt": "2024-11-08T11:24:43Z"
  },
  "version": "1.0.0",
  "expiresAt": "2030-01-01T00:00:00Z",
  "metadata": {
    "marginOfError": 0.5
  },
  "interfaces": [
    {
      "templateName": "generic_http",
      "protocol": "http",
      "policy": "NONE",
      "properties": {
        "accessAddresses": [
          "192.168.56.116",
          "tp2.greenhouse.com"
        ],
        "accessPort": 8080,
        "operations": {
          "query-temperature": {
            "path": "/query",
            "method": "GET"
          }
        },
        "basePath": "/kelvin"
      }
    }
  ],
  "createdAt": "2024-11-19T12:00:07.959849300Z",
  "updatedAt": "2024-11-19T12:00:07.959849300Z"
}

2. celsiusInfo: The only difference with the kelvinInfo is the service definition name (celsiusInfo) and the interface (GET tp2.greenhouse.com:8080/celsius/query). All the other registation data will remain the same.

So the request will look like this:

curl -X 'POST' \
  'http://localhost:8443/serviceregistry/service-discovery/register' \
  -H 'accept: application/json' \
  -H 'Authorization: Bearer SYSTEM//TemperatureProvider2' \
  -H 'Content-Type: application/json' \
  -d '{
  "serviceDefinitionName": "celsiusInfo",
  "version": "",
  "expiresAt": "2030-01-01T00:00:00Z",
  "metadata": {
    "marginOfError": 0.5
  },
  "interfaces": [
    {
      "templateName": "generic_http",
      "protocol": "http",
      "policy": "NONE",
      "properties": {
        "accessAddresses": [ "192.168.56.116", "tp2.greenhouse.com" ],
        "accessPort": 8080,
        "basePath": "/celsius",
        "operations": { "query-temperature": { "method": "GET", "path": "/query"} }
      }
    }
  ]
}'

The received response is the following:

{
  "instanceId": "TemperatureProvider2|celsiusInfo|1.0.0",
  "provider": {
    "name": "TemperatureProvider2",
    "metadata": {
      "scales": [
        "kelvin",
        "celsius"
      ],
      "location": {
        "side": "North",
        "block": 2
      },
      "indoor": true
    },
    "version": "1.0.0",
    "addresses": [
      {
        "type": "IPV4",
        "address": "192.168.56.116"
      },
      {
        "type": "HOSTNAME",
        "address": "tp2.greenhouse.com"
      }
    ],
    "device": {
      "name": "THERMOMETER2",
      "metadata": {
        "scales": [
          "kelvin",
          "celsius"
        ],
        "maxTemperature": {
          "kelvin": 310,
          "celsius": 40
        },
        "minTemperature": {
          "kelvin": 260,
          "celsius": -10
        }
      },
      "addresses": [
        {
          "type": "MAC",
          "address": "81:ef:1a:44:7a:f5"
        }
      ],
      "createdAt": "2024-11-04T01:53:02Z",
      "updatedAt": "2024-11-04T01:53:02Z"
    },
    "createdAt": "2024-11-08T10:21:11Z",
    "updatedAt": "2024-11-08T10:21:11Z"
  },
  "serviceDefinition": {
    "name": "celsiusInfo",
    "createdAt": "2024-10-24T21:48:36Z",
    "updatedAt": "2024-10-24T21:48:36Z"
  },
  "version": "1.0.0",
  "expiresAt": "2030-01-01T00:00:00Z",
  "metadata": {
    "marginOfError": 0.5
  },
  "interfaces": [
    {
      "templateName": "generic_http",
      "protocol": "http",
      "policy": "NONE",
      "properties": {
        "accessAddresses": [
          "192.168.56.116",
          "tp2.greenhouse.com"
        ],
        "accessPort": 8080,
        "operations": {
          "query-temperature": {
            "path": "/query",
            "method": "GET"
          }
        },
        "basePath": "/celsius"
      }
    }
  ],
  "createdAt": "2024-11-19T16:56:06.439181300Z",
  "updatedAt": "2024-11-19T16:56:06.439181300Z"
}

3. alertService:

Our last service will be responsible for sending error messages. The registration data is the following:

  • service definition name: In this case this is alertService.
  • version: We will use the default version.
  • expires at: The alertService expires a bit earlier than the previous ones, so we set this to 01. 01. 2027.
  • metadata: For alert service, the maximum possible delay is given, which is 15 sec.
  • interfaces: The interface's endpoints provided by the alert service are the following:
    • POST tp2.greenhouse.com:8000/alert/subscribe
    • DELETE tp2.greenhouse.com:8000/alert/unsubscribe
    • POST tp2.greenhouse.com:8000/alert/threshold

We will register this service with the following request:

curl -X 'POST' \
  'http://localhost:8443/serviceregistry/service-discovery/register' \
  -H 'accept: application/json' \
  -H 'Authorization: Bearer SYSTEM//TemperatureProvider2' \
  -H 'Content-Type: application/json' \
  -d '{
  "serviceDefinitionName": "alertService",
  "version": "",
  "expiresAt": "2027-01-01T00:00:00Z",
  "metadata": {
    "maxDelay": { "value": 15, "unit": "sec" }
  },
  "interfaces": [
    {
      "templateName": "generic_http",
      "protocol": "http",
      "policy": "NONE",
      "properties": {
        "accessAddresses": [ "192.168.56.116", "tp2.greenhouse.com" ],
        "accessPort": 8000,
        "basePath": "/alert",
        "operations": {
          "subscribe": { "method": "POST", "path": "/subscribe" },
          "unsubscribe": { "method": "DELETE", "path": "/unsubscribe" },
          "set-threshold": { "method": "POST", "path": "/threshold" }
        }
      }
    }
  ]
}'

The received answer:

{
  "instanceId": "TemperatureProvider2|alertService|1.0.0",
  "provider": {
    "name": "TemperatureProvider2",
    "metadata": {
      "scales": [
        "kelvin",
        "celsius"
      ],
      "location": {
        "side": "North",
        "block": 2
      },
      "indoor": true
    },
    "version": "1.0.0",
    "addresses": [
      {
        "type": "IPV4",
        "address": "192.168.56.116"
      },
      {
        "type": "HOSTNAME",
        "address": "tp2.greenhouse.com"
      }
    ],
    "device": {
      "name": "THERMOMETER2",
      "metadata": {
        "scales": [
          "kelvin",
          "celsius"
        ],
        "maxTemperature": {
          "kelvin": 310,
          "celsius": 40
        },
        "minTemperature": {
          "kelvin": 260,
          "celsius": -10
        }
      },
      "addresses": [
        {
          "type": "MAC",
          "address": "81:ef:1a:44:7a:f5"
        }
      ],
      "createdAt": "2024-11-04T01:53:02Z",
      "updatedAt": "2024-11-04T01:53:02Z"
    },
    "createdAt": "2024-11-08T10:21:11Z",
    "updatedAt": "2024-11-08T10:21:11Z"
  },
  "serviceDefinition": {
    "name": "alertService",
    "createdAt": "2024-11-08T15:23:10Z",
    "updatedAt": "2024-11-08T15:23:10Z"
  },
  "version": "1.0.0",
  "expiresAt": "2027-01-01T00:00:00Z",
  "metadata": {
    "maxDelay": {
      "value": 15,
      "unit": "sec"
    }
  },
  "interfaces": [
    {
      "templateName": "generic_http",
      "protocol": "http",
      "policy": "NONE",
      "properties": {
        "accessAddresses": [
          "192.168.56.116",
          "tp2.greenhouse.com"
        ],
        "accessPort": 8000,
        "operations": {
          "subscribe": {
            "path": "/subscribe",
            "method": "POST"
          },
          "unsubscribe": {
            "path": "/unsubscribe",
            "method": "DELETE"
          },
          "set-threshold": {
            "path": "/threshold",
            "method": "POST"
          }
        },
        "basePath": "/alert"
      }
    }
  ],
  "createdAt": "2024-11-19T17:08:47.706960300Z",
  "updatedAt": "2024-11-19T17:08:47.706960300Z"
}

Step 5: Lookup and Revoke Service

Let's say we have decided to no longer provide TemperatureProvider2's alertService.

For deleting the service, we have to know the service instance ID, which was generated by the ServiceRegistry, when we registered our service into the Local Cloud. We can find out what the ID is, if we perform a lookup operation. Of course, if we know the ID, this step can be skipped.

Since we know that the provider name is TemperatureProvider2, the service definition name is alertService, and the version was 1.0.0, we will send a lookup request with these filters. We will set the verbose flag to false, because we only need the service instance ID here, all the other additional data is unnecessary.

Note that our case, the service discovery policy is set to OPEN. If the discovery policy is RESTRICTED, we will only retrieve the services that have the metadata key unrestrictedDiscovery, and this is set to true.

The lookup request looks like this:

curl -X 'POST' \
  'http://localhost:8443/serviceregistry/service-discovery/lookup?verbose=false' \
  -H 'accept: application/json' \
  -H 'Authorization: Bearer SYSTEM//TemperatureProvider2' \
  -H 'Content-Type: application/json' \
  -d '{
  "instanceIds": [
  ],
  "providerNames": [
    "TemperatureProvider2"
  ],
  "serviceDefinitionNames": [
    "alertService"
  ],
  "versions": [
    "1.0.0"
  ],
  "alivesAt": "",
  "metadataRequirementsList": [
  ],
  "interfaceTemplateNames": [
  ],
  "interfacePropertyRequirementsList": [
  ],
  "policies": [
  ]
}'

The lookup response:

{
  "entries": [
    {
      "instanceId": "TemperatureProvider2|alertService|1.0.0",
      "provider": {
        "name": "TemperatureProvider2",
        "metadata": {
          "scales": [
            "kelvin",
            "celsius"
          ],
          "location": {
            "side": "North",
            "block": 2
          },
          "indoor": true
        },
        "version": "1.0.0",
        "addresses": [
          {
            "type": "IPV4",
            "address": "192.168.56.116"
          },
          {
            "type": "HOSTNAME",
            "address": "tp2.greenhouse.com"
          }
        ],
        "device": {
          "name": "THERMOMETER2"
        },
        "createdAt": "2024-11-08T10:21:11Z",
        "updatedAt": "2024-11-08T10:21:11Z"
      },
      "serviceDefinition": {
        "name": "alertService",
        "createdAt": "2024-11-08T15:23:10Z",
        "updatedAt": "2024-11-08T15:23:10Z"
      },
      "version": "1.0.0",
      "expiresAt": "2025-01-01T00:00:00Z",
      "metadata": {
        "maxDelay": {
          "value": 15,
          "unit": "sec"
        }
      },
      "interfaces": [
        {
          "templateName": "generic_http",
          "protocol": "http",
          "policy": "NONE",
          "properties": {
            "accessAddresses": [
              "192.168.56.116",
              "tp2.greenhouse.com"
            ],
            "accessPort": 8000,
            "operations": {
              "subscribe": {
                "path": "/subscribe",
                "method": "POST"
              },
              "unsubscribe": {
                "path": "/unsubscribe",
                "method": "DELETE"
              },
              "set-threshold": {
                "path": "/threshold",
                "method": "POST"
              }
            },
            "basePath": "/alert"
          }
        }
      ],
      "createdAt": "2024-11-19T17:08:48Z",
      "updatedAt": "2024-11-19T17:08:48Z"
    }
  ],
  "count": 1
}

Since there was exactly one response, we learned that the service instance id is TemperatureProvider2|alertService|1.0.0. We can revoke the service by sending the following request:

curl -X 'DELETE' \
  'http://localhost:8443/serviceregistry/service-discovery/revoke/TemperatureProvider2%7CalertService%7C1.0.0' \
  -H 'accept: */*' \
  -H 'Authorization: Bearer SYSTEM//TemperatureProvider2'

Note, the service instance id contains pipes (|) as separator characters, which has special meanings on some operation systems. Because of that, the pipe has to be encoded as %7C, that is why we used these in the URL.

This operation only works, if the service we are deleting is associated with our system. Otherwise, the following error message will be received:

{
  "errorMessage": "Revoking other systems' service is forbidden",
  "errorCode": 403,
  "exceptionType": "FORBIDDEN",
  "origin": "DELETE /serviceregistry/service-discovery/revoke/TemperatureProvider2|alertService|1.0.0"
}

Step 6: Revoke System

Maybe later we want to revoke the TemperatureProvider2 because we will not use it anymore. We can remove the system from the Local Cloud by using the revoke system operation:

curl -X 'DELETE' \
  'http://localhost:8443/serviceregistry/system-discovery/revoke' \
  -H 'accept: */*' \
  -H 'Authorization: Bearer SYSTEM//TemperatureProvider2'

The ServiceRegistry will delete our system.

Example 2: Consumer

In this example, we'll see how:

  • a system called TemperatureConsumer1,
  • running on the device named WEATHER_DISPLAYER1,
  • looks up for available kelvinInfo services,

after registering itself and its device into the Local Cloud.

Step 1: Authentication

Similar to the providers's authentication, we will use self declared authentication, and use the following authorization header:

-H 'Authorization: Bearer SYSTEM//TemperatureConsumer1'

Step 2: Register and Revoke Device

Before registrating the system, we will register our device, because it doesn't exist in the Local Cloud yet. We provide the following information about the device:

  • name: WEATHER_DISPLAYER1
  • metadata: We specify here that the displayer type is digital, and it is capable to display data about temperature and wind.
  • addresses: The device has a MAC address, which is 57:2a:b8:ff:c8:f1.

The request will look like this:

curl -X 'POST' \
  'http://localhost:8443/serviceregistry/device-discovery/register' \
  -H 'accept: application/json' \
  -H 'Authorization: Bearer SYSTEM//TemperatureConsumer1' \
  -H 'Content-Type: application/json' \
  -d '{
  "name": "WEATHER_DISPLAYER1",
  "metadata": {
    "type": "digital",
    "displayedData": [ "wind", "temperature" ]
  },
  "addresses": [
    "57:2a:b8:ff:c8:f1"
  ]
}'

After successful registration, we receive the following response:

{
  "name": "WEATHER_DISPLAYER1",
  "metadata": {
    "type": "digital",
    "displayedData": [
      "wind",
      "temperature"
    ]
  },
  "addresses": [
    {
      "type": "MAC",
      "address": "57:2a:b8:ff:c8:f1"
    }
  ],
  "createdAt": "2024-11-10T15:36:53.720922100Z",
  "updatedAt": "2024-11-10T15:36:53.720922100Z"
}

If for some reason we want to delete this device in the future, we can do this by sending the following request:

curl -X 'DELETE' \
  'http://localhost:8443/serviceregistry/device-discovery/revoke/WEATHER_DISPLAYER1' \
  -H 'accept: */*' \
  -H 'Authorization: Bearer SYSTEM//TemperatureConsumer1'

Note that this operation will only be successful, if no system is connected to the device anymore. Otherwise you will get the following error message:

{
  "errorMessage": "At least one system is assigned to this device",
  "errorCode": 423,
  "exceptionType": "LOCKED",
  "origin": "DELETE /serviceregistry/device-discovery/revoke/WEATHER_DISPLAYER1"
}

In this example, we will not delete the device yet, because TemperatureConsumer1 runs on it.

Step 3: Register System

Now, that we registered the device, we will register the system too with the following data:

  • metadata: The system uses Kelvin, Celsius and Fahrenheit scales. It is placed indoor and is located in room 14.
  • version: This is the second version of this system. We can set it to 2, the ServiceRegistry will normalize it later according to semantic versioning.
  • addresses: We specify an IP address (192.168.49.1) and the hostname (tc1.greenhouse.com).
  • device name: This will be WEATHER_DISPLAYER1, which we registered earlier.

The registation request:

curl -X 'POST' \
  'http://localhost:8443/serviceregistry/system-discovery/register' \
  -H 'accept: application/json' \
  -H 'Authorization: Bearer SYSTEM//TemperatureConsumer1' \
  -H 'Content-Type: application/json' \
  -d '{
  "metadata": {
    "scales": [ "kelvin", "celsius", "fahrenheit" ],
    "location": { "room": 14 },
    "indoor": true
  },
  "version": "2",
  "addresses": [
    "192.168.49.1",
    "tc1.greenhouse.com"
  ],
  "deviceName": "WEATHER_DISPLAYER1"
}'

Here is the response we received:

{
  "name": "TemperatureConsumer1",
  "metadata": {
    "scales": [
      "kelvin",
      "celsius",
      "fahrenheit"
    ],
    "location": {
      "room": 14
    },
    "indoor": true
  },
  "version": "2.0.0",
  "addresses": [
    {
      "type": "IPV4",
      "address": "192.168.49.1"
    },
    {
      "type": "HOSTNAME",
      "address": "tc1.greenhouse.com"
    }
  ],
  "device": {
    "name": "WEATHER_DISPLAYER1",
    "metadata": {
      "type": "digital",
      "displayedData": [
        "wind",
        "temperature"
      ]
    },
    "addresses": [
      {
        "type": "MAC",
        "address": "57:2a:b8:ff:c8:f1"
      }
    ],
    "createdAt": "2024-11-10T15:36:54Z",
    "updatedAt": "2024-11-10T15:36:54Z"
  },
  "createdAt": "2024-11-10T16:05:55.973663300Z",
  "updatedAt": "2024-11-10T16:05:55.973663300Z"
}

Step 4: Lookup Services

Let's say that the TemperatureConsumer1 wants to consume the kelvinInfo service. We have to perform a lookup operation to find out the service instances registered into the Local Cloud with the corresponding service definition name. We are looking for services, that will not expire until 31. december 2025, and the margin of error is not higher than 1 degree.

We will use the following filters during lookup:

  • Service definition names: We are looking for services named kelvinInfo.
  • Alives at: This should be the UTC string representation of 31. 12. 2025.
  • Metadata requirements list: As specified, the margin of error sould be less than or equals to 1. However, the service might not contain this metadata, if the measured temperature is always perfectly accurate. In this case, there has to be a reliabe flag which is set to true. So we will have two metadata requirements, one is a limit for the margin of error metadata, and the other one is to check the reliable flag.

We will set the verbose parameter to true, because we want all the possible details about the services, so we can make an optimal decision, which one to consume.

As mentioned in example 1, the service discovery policy here is set to OPEN. If the discovery policy is RESTRICTED, we may face some restrictions.

The request looks like this:

curl -X 'POST' \
  'http://localhost:8443/serviceregistry/service-discovery/lookup?verbose=true' \
  -H 'accept: application/json' \
  -H 'Authorization: Bearer SYSTEM//TemperatureConsumer1' \
  -H 'Content-Type: application/json' \
  -d '{
  "instanceIds": [
  ],
  "providerNames": [
  ],
  "serviceDefinitionNames": [
    "kelvinInfo"
  ],
  "versions": [
  ],
  "alivesAt": "2025-12-31T00:00:00Z",
  "metadataRequirementsList": [
    {
      "marginOfError": { "op": "LESS_THAN_OR_EQUALS_TO", "value": 1}
    },
    {
      "reliable": true
    }
  ],
  "interfaceTemplateNames": [
  ],
  "interfacePropertyRequirementsList": [
  ],
  "policies": [
  ]
}'

The result contains two entities, TemperatureProvider2|kelvinInfo|1.0.0 and TemperatureProvider1|kelvinInfo|1.0.0:

{
  "entries": [
    {
      "instanceId": "TemperatureProvider2|kelvinInfo|1.0.0",
      "provider": {
        "name": "TemperatureProvider2",
        "metadata": {
          "scales": [
            "kelvin",
            "celsius"
          ],
          "location": {
            "side": "North",
            "block": 2
          },
          "indoor": true
        },
        "version": "1.0.0",
        "addresses": [
          {
            "type": "IPV4",
            "address": "192.168.56.116"
          },
          {
            "type": "HOSTNAME",
            "address": "tp2.greenhouse.com"
          }
        ],
        "device": {
          "name": "THERMOMETER2",
          "metadata": {
            "scales": [
              "kelvin",
              "celsius"
            ],
            "maxTemperature": {
              "kelvin": 310,
              "celsius": 40
            },
            "minTemperature": {
              "kelvin": 260,
              "celsius": -10
            }
          },
          "addresses": [
            {
              "type": "MAC",
              "address": "81:ef:1a:44:7a:f5"
            }
          ],
          "createdAt": "2024-11-04T01:53:02Z",
          "updatedAt": "2024-11-04T01:53:02Z"
        },
        "createdAt": "2024-11-08T10:21:11Z",
        "updatedAt": "2024-11-08T10:21:11Z"
      },
      "serviceDefinition": {
        "name": "kelvinInfo",
        "createdAt": "2024-11-08T11:24:43Z",
        "updatedAt": "2024-11-08T11:24:43Z"
      },
      "version": "1.0.0",
      "expiresAt": "2030-01-01T00:00:00Z",
      "metadata": {
        "marginOfError": 0.5
      },
      "interfaces": [
        {
          "templateName": "generic_http",
          "protocol": "http",
          "policy": "NONE",
          "properties": {
            "accessAddresses": [
              "192.168.56.116",
              "tp2.greenhouse.com"
            ],
            "accessPort": 8080,
            "operations": {
              "query-temperature": {
                "path": "/query",
                "method": "GET"
              }
            },
            "basePath": "/kelvin"
          }
        }
      ],
      "createdAt": "2024-11-10T14:24:13Z",
      "updatedAt": "2024-11-10T22:43:19Z"
    },
    {
      "instanceId": "TemperatureProvider1|kelvinInfo|1.0.0",
      "provider": {
        "name": "TemperatureProvider1",
        "metadata": {
          "scales": [
            "kelvin"
          ],
          "location": {
            "side": "East",
            "block": 2
          },
          "indoor": false
        },
        "version": "1.0.0",
        "addresses": [
          {
            "type": "IPV4",
            "address": "192.168.56.110"
          },
          {
            "type": "HOSTNAME",
            "address": "tp1.greenhouse.com"
          }
        ],
        "createdAt": "2024-11-10T16:15:23Z",
        "updatedAt": "2024-11-10T16:15:23Z"
      },
      "serviceDefinition": {
        "name": "kelvinInfo",
        "createdAt": "2024-11-08T11:24:43Z",
        "updatedAt": "2024-11-08T11:24:43Z"
      },
      "version": "1.0.0",
      "expiresAt": "2030-05-31T00:00:00Z",
      "metadata": {
        "reliable": true
      },
      "interfaces": [
        {
          "templateName": "generic_http",
          "protocol": "http",
          "policy": "NONE",
          "properties": {
            "accessAddresses": [
              "192.168.56.110",
              "tp1.greenhouse.com"
            ],
            "accessPort": 8080,
            "operations": {
              "query-temperature": {
                "path": "/info",
                "method": "GET"
              }
            },
            "basePath": "/kelvin"
          }
        }
      ],
      "createdAt": "2024-11-10T21:08:21Z",
      "updatedAt": "2024-11-10T22:43:19Z"
    }
  ],
  "count": 2
}

Now we are free to choose, which instance of kelvinInfo service to consume.
